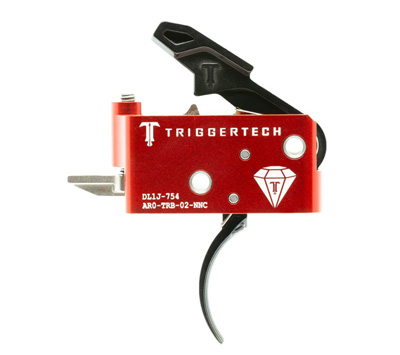

TriggerTech Diamond AR Trigger, Black Curved Trigger

Description: TriggerTech Diamond AR Trigger, Black Curved Trigger. The AR Diamond curved adjustable trigger is an ideal zero creep upgrade to the AR pistol or rifle chambered in popular calibers such as .308 Win, .223 Rem, 5.56 NATO, .300 Blackout and more. This drop-in ready trigger features a 7075 aluminum housing with a red anodized finish, 440C stainless steel components, and a black PVD (Physical Vapor Deposition) coated trigger. The trigger utilizes the patented Frictionless Release Technology to achieve a more crisp and reliable trigger pull than any other tech on the market. The cleaner pull of the AR Diamond trigger makes it more accurate for 3 gun competition, hunting, precision shooting, harsh environments and more.

The AR Diamond Trigger was designed for top competitive shooters to offer the most accurate and dependable trigger on the market. Featuring Frictionless Release Technology (FRT), this drop-in AR trigger has a short, two-stage action, designed to feel like a 1911 trigger. This action provides a true zero-creep break, extremely short overtravel, a sub 0.015" tactical reset, and offers outstanding reliability even in the harshest environments. Utilizing CLKR Technology, the pull weight is quickly and confidently adjusted from 1.5 - 4.0 lbs in 2oz increments from a set screw with the trigger installed. Due to there being truly zero creep, most shooters report the pull weights feeling ~0.5lbs lighter than a friction based trigger of the same measured pull weight. Changing the pull weight does not affect hammer force so you get dependable primer strikes at every weight.

Frictionless Release Technology, along with hardened 440C stainless steel internal components ensure corrosion resistance and an extended service life. As Frictionless Release Technology does not rely on coating, polishing or lubricating the key engagement surfaces, trigger pulls will be more consistent from shot to shot and after thousands of shots than you ever thought possible.

Diamond AR Primary Trigger	TRIGGER LEVER TYPE Traditional Curved TRIGGER ACTION Short Two Stage FRT Yes TKR Technology Yes - Mini Overtravel CLKR Technology Yes - Inc. Adjustable FLTWR Technology Yes - Hard Primer Compatible CREEP 0.000" OVERTRAVEL < 0.015" RESET < 0.030" TAKE UP DISTANCE 0.035" 1st STAGE WEIGHT 4oz 2nd STAGE WEIGHT 20oz - 3.75lbs TOTAL PULL WEIGHT 1.5lbs - 4.00lbs PIN SIZE Standard Mil-Spec (0.154") WARRANTY Product Lifetime PLATFORM AR 15 / Semi-Automatic HOUSING MATERIAL 7075 Aluminum COMPONENT MATERIAL 440C Stainless Steel ACCENTS PVD
Intended Use: 3 Gun, close quarter engagement, competition, harsh environments operations, high speed shooting, home defense, law enforcement, long range hunting, military, precision shooting, rugged hunting, target shooting, varmint hunting.

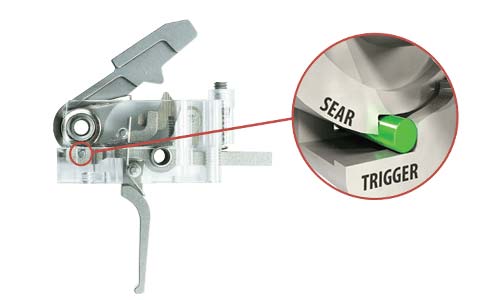

Frictionless Release Technology TriggerTech developed FRT to get away from the limitations faced by sliding friction triggers (all other triggers are sliding friction triggers). FRT is comprised of a patented, free-floating roller that is captured between the sear and the trigger. This advancement makes it possible to engineer the ideal release characteristics into every one of these TriggerTech triggers.

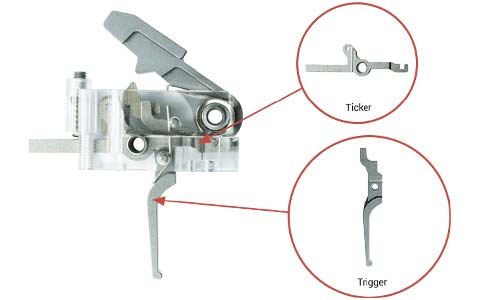

TKR Technology TriggerTech set out to develop a trigger with leading overtravel and reset control and developed a new component to achieve this. TKR Technology utilizes something named the "ticker" - an intermediary component that can pivot freely from trigger lever to enable the sear to release without requiring further displacement from the trigger lever. This minimizes overtravel and sets you up for the perfect reset - one that is short (< 0.030") but remains tactile and forceful enough so you are not wondering if your next shot is good to go.

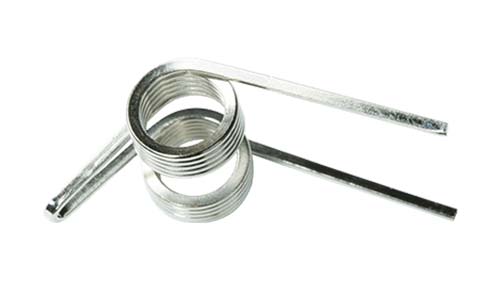

FLTWR Spring Technology High performance AR triggers often have a reputation for failing to consistently deliver sufficient hammer strikes. To ensure TriggerTech was not type-cast they developed FLTWR Spring Technology. FLTWR Spring Technology is simply a flat wire hammer spring that enables more coils and provide more force into the hammer. This innovation results in more dependable primer ignition, less variability in bullet velocity and a longer service life for your trigger.

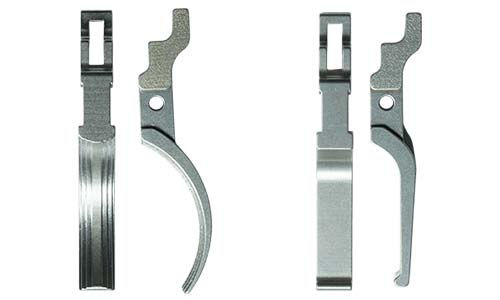

TriggerTech Levers The trigger lever is where you connect with your firearm and TriggerTech believes it should be perfect. Their curved triggers have that perfect amount of bend and the vertical grooves which are there to help keep your finger in place. Their straight levers offer a different feel and enable operators to comfortably adjust trigger pull weight by moving their finger up or down on the lever. The edges are neither round nor sharp enabling control without discomfort. The locator numb is large enough to be noticed yet minimalist enough that it is possible to effectively operate even with your finger over this point.

Manufacturer: TriggerTech

Note: It is recommended that all TriggerTech triggers be installed by a qualified and trained gunsmith.

PRODUCT SPECIFICATIONS:

• Brand: TriggerTech
• Caliber: .223 Rem,5.56x45mm,.308 Win,7.62x51mm,9mm,.22 LR,.40 S&W,.300 Blackout

• Finish / Color: Red,Black
• Firearm Type: Pistol,Rifle
• Material: Aluminum,Steel
• Models Fit: AR-15,AR-10,AR-22,AR-9,AR-40
