Leupold VX-3HD 4.5-14x50, 30mm Tube, CDS-ZL Illum. FireDot Twilight Hunter Reticle
Product Description
Description: Leupold VX-3HD 4.5-14x50, 30mm Tube, CDS-ZL Illum. FireDot Twilight Hunter Reticle. The VX-3HD 4.5-14x50mm delivers legendary performance and elite optical clarity in an incredibly tough, lightweight package. Its extremely popular magnification range is perfect for timber and western mountain hunting. The VX-3HD delivers outstanding performance in low light. With Leupold's Elite Optical System, it has excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light and the resolution and clarity that diehard hunters and shooters demand. The illuminated FireDot reticle with seven brightness settings and an easy-to-use illumination dial will get you on target fast, even in harsh daylight. The VX-3HD also showcases match-grade repeatability and ergonomic controls that are easy to read and use, even with gloves. The VX-3HD is the best lightweight, low-light hunting scope in its class. And with its low-profile, one-revolution CDS ZeroLock dial, you can be confident your dial will only move when you want it to. Push the button to unlock it, dial it, and then rotate it back to zero to lock it in place. It's that simple. Everything put into your VX-3HD is there to help you tag out. Like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
Features:
- A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
- The ZeroLock system eliminates accidental dial movement by locking it in place.
- The ZeroStop system creates a backstop when returning the dial to zero, so you don't accidentally turn the dial a full revolution in the wrong direction.
- Leupold's Custom Dial System (CDS) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
- Leupold's Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light and the resolution and clarity that diehard hunters and shooters demand.
- This scope comes with an illuminated reticle, which can help you get on target faster in low-light situations.
 | |

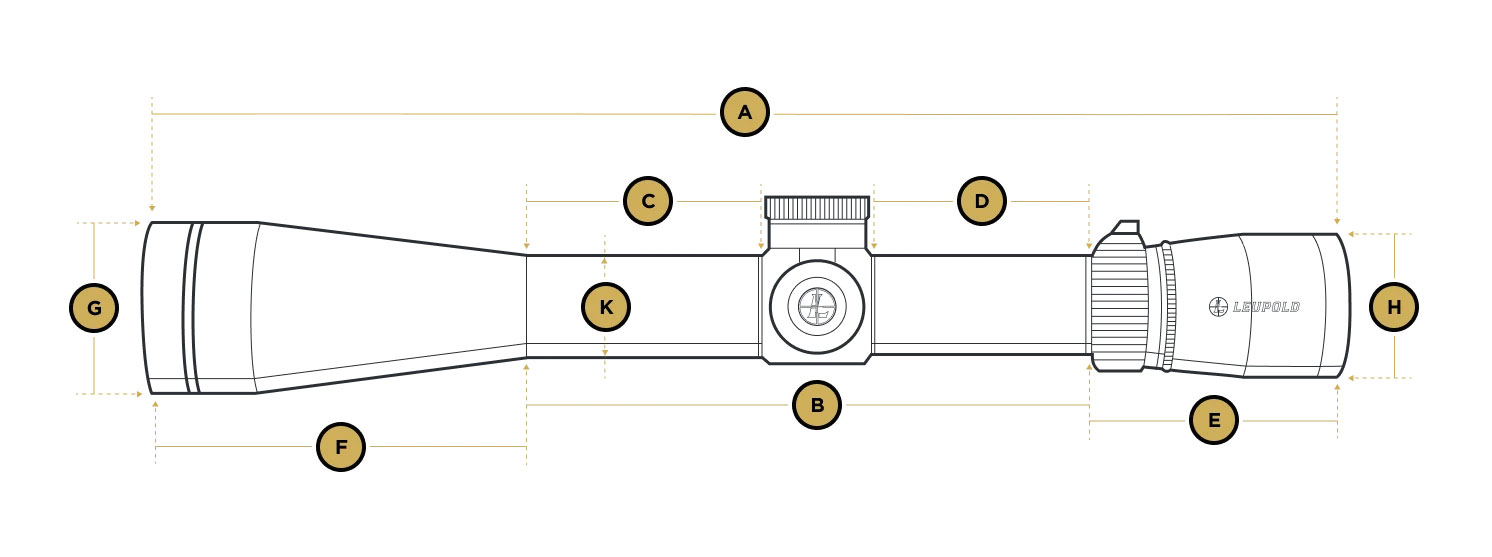

| A: Total Length | 12.33in. |
| B: Total Mounting Space | 5.52in. |
| C: Front Mounting Space | 1.82in. |
| D: Rear Mounting Space | 2.48in. |
| E: Eyepiece Length | 3.12in. |
| F: Objective Length | 3.69in. |
| G: Objective Diameter | 2.3in. |
| H: Eyepiece Diameter | 1.63in. |
| K: Maintube Diameter | 30mm |
TECHNICAL DATA
| Adjustable Objective | No |
| Side Focus | No |
| Reticle Focal Plane | Second Focal Plane |
| Elevation Adjustment Type | CDS-ZL |
| Locking Dial | Yes |
| Revolution Indicator | No |
| Rezero Type | Set Screw |
| Windage Adjustment Type | Finger Click |
| BDC Dial Included | No |
| Reticle Type | Illuminated |
| Reticle | Illum. FireDot Twilight Hunter |
| Magnification Type | Variable |
| Battery Type | CR2032 |
| Switch Type | Push Button |
| Nightvision Compatible Illumination | No |
| Daylight Bright Illumination | Yes |
| Motion Sensor Technology (MST) | Yes |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Weight (oz) | 19.5 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 95 |
| Elevation Adjustment Range (MIL) | 27.6343798232435 |
| Elevation Adjustment Range (cm @ 100m) | 276.343798232435 |
| Elevation Adjustment Per Revolution | 15 MOA |
| Elevation Dial Travel Limit | 14.5MOA |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 80 |
| Windage Adjustment Range (MIL) | 23.2710566932577 |
| Windage Adjustment Range (cm @ 100m) | 232.710566932577 |
| Windage Adjustment Per Revolution | 15 MOA |
| Magnification Max | 14 |
| Magnification Min | 4.5 |
| Objective Lens Diameter (mm) | 50 |
| Linear FOV Low Mag (ft@100yds) | 20.5 |
| Linear FOV High Mag (ft@100yds) | 7.6 |
| Angular FOV Low Mag (Degrees) | 3.9 |
| Angular FOV High Mag (Degrees) | 1.5 |
| Eye Relief Low Mag (in) | 4.4 |
| Eye Relief High Mag (in) | 3.6 |
| Fixed Parallax-Free Distance (yd) | 150 |
| Battery Life (hr), Low Intensity | 1600 |
| Battery Life (hr), Medium Intensity | 1000 |
| Battery Life (hr), High Intensity | 300 |
| Number of Illum Settings | 8 |
| SKU | 180629 |
Manufacturer: Leupold
PRODUCT SPECIFICATIONS:
- Brand: Leupold
- Finish / Color: Black
- Firearm Type: Rifle
- Material: Aluminum
- Optics Magnification: 4.5-14x
- Optics Objective Size: 50mm
- Scope Tube Diameter: 30mm
- Sight Style: Scope
Specifications
- Brand: Leupold
- Finish / Color: Black
- Firearm Type: Rifle
- Material: Aluminum
- Optics Magnification: 4.5-14x
- Optics Objective Size: 50mm
- Scope Tube Diameter: 30mm
- Sight Style: Scope
